Description

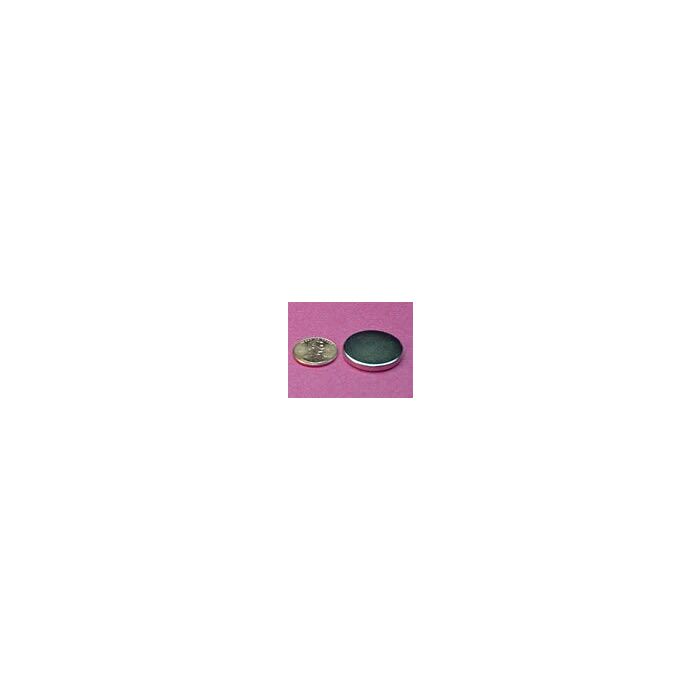

Replacement Magnet for UPT Vector, Sigma and Micro Sigma containers.


If you lose a magnet or have one break, this is a replacement. These magnets are used in riser covers and drogue disc covers. Riggers also use these magnets for making magnetic main deployment bags and magnetic freefly handles. Sold per magnet.



  • Dimensions: 1" dia. x 1/8" thick

  • Tolerances: ±0.004" x ±0.004"

  • Material: NdFeB, Grade N42

  • Plating/Coating: Ni-Cu-Ni (Nickel)

  • Magnetization Direction: Axial (Poles on Flat Ends)

  • Weight: 0.426 oz. (12.1 g)

  • Pull Force, Case 1: 12.60 lbs

  • Pull Force, Case 2: 57.00 lbs

  • Surface Field: 1601 Gauss

  • Max Operating Temp: 176ºF (80ºC)

  • Brmax: 13,200 Gauss

  • BHmax: 42 MGOe


This is a strong NdFeB disc in the very popular 1" diameter size. The nice thin shape allows the DX02 to be used inconspicuously for a wide array of applications.
