UPT Micro Sigma Tandem Complete Skydiving Rig Gear Package

$18,050.00
Upload the order forms below with your online order for colors, measurements and options.
Micro Sigma Container Order Form
Sigma Main Canopy Order Form

Maximum 25 characters

Maximum 50 characters

Compatible file extensions (2MB Limit): pdf, jpg, doc

Maximum 25 characters

Compatible file extensions (2MB Limit): pdf, jpg, doc

A FREE standard shipping option is available to all US, APO and FPO addresses at checkout for all orders of $499 or more (excludes Smoke Grenades).  ChutingStar ships worldwide from our Marietta, Georgia, location. Orders are packaged and shipped Monday through Friday. ChutingStar offers several shipping speeds from USPS and UPS at checkout. Full Shipping Info at this link.

SuperStars Rewards can be earned and spent on products you purchase online at checkout. You must be logged in to your account at checkout to earn and/or use your points. Full details on the the SuperStars Rewards Program can be found at this link.

We want you to be completely satisfied with your purchase. If you change your mind about the color or the fit is not quite right, whatever the reason, you can exchange it for another item or return it for a refund. ChutingStar will accept most items back for a full or partial refund, depending upon the original item, the condition and the timeliness of the return. Full returns and exchanges info at this link.

UPT Micro Sigma Tandem Complete Skydiving Rig Gear Package.

This ChutingStar Gear Package includes:

  • Base price of UPT Micro Sigma harness/container
  • Stock or Custom Sigma Tandem Main Canopy
  • Stock or Custom Sigma II Tandem Reserve Canopy
  • CYPRES 2 AAD

Substitutions of the main canopies and/or AAD is available (see the price difference drop down boxes). Extra options for the UPT Micro Sigma can be added above. The initial assembly, inspection and packing can also with a full rig purchase above.

Additional information on each part can be found in their respective individual listings on ChutingStar.com.

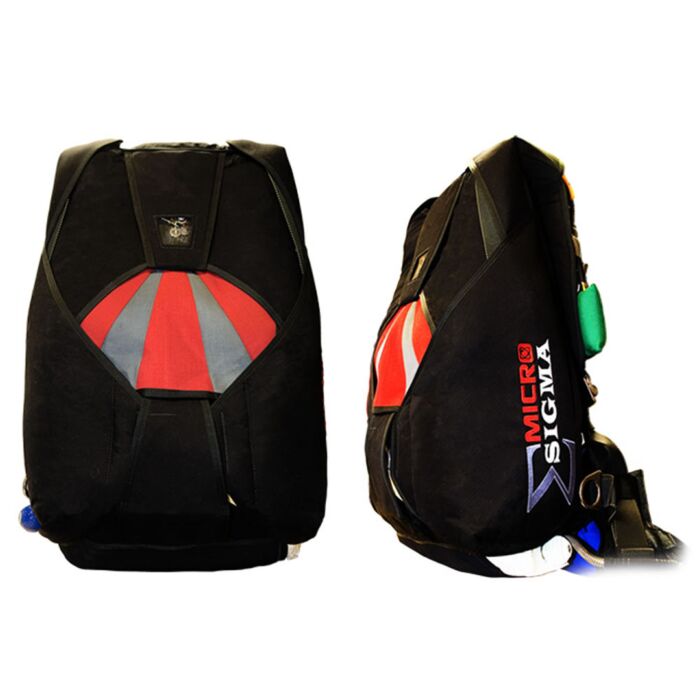

UPT Micro Sigma Tandem Skydiving Container with Passenger Harness. United Parachute Technologies is the king of the skydiving industry.

UPT with Bill Booth at the helm is known for the 3-ring system, tandem skydiving, magnets, spectra reserve ripcord and the Skyhook.

In engineering, the word Sigma means a "Summation" or "Answer" to the problem. UPT chose to name their tandem rig Sigma, because it represents a "Summation" of everything they have learned about tandem equipment, and the people who use it, since 1984.

Unlike all other tandem systems, where the drogue was simply tacked onto an existing design, the Sigma was built from the ground up, as a drogue deployed system. Contained within its design is an "answer" to every container related problem UPT has observed.

Unique highlights and features of the Micro Sigma Tandem System include:

  • Comfortable Head High Position
  • Patented Disc Release Handles
  • Retractable Release Handles
  • Superior Pin Protection
  • User-friendly Component Replacement

Micro Sigma Advantage: The Parts

A special safety pin prevents premature container openings if release handles are accidentally pulled prior to drogue deployment. This pin is automatically extracted once the drogue is deployed, thus arming the drogue release handles

A diagram on the inside main pin flap makes it easy for anyone to do a pin check while inspecting the new disc drogue release.

Magnetic Riser Covers

Super clean design of the new drogue pouch eliminates the need for velcro or tuck tabs. Packing is quicker and trouble free.

Drogue

The drogue bridle is completely covered. But even if you accidentally snag the drogue bridle, it will not open the main container.

Both left & right handles for drogue release.

Both drogue release handles are retractable. Pull either one, pull both simultaneously, and let them go. They'll retract right back to their original position.

The right drogue release handle is conveniently positioned on the upper right leg strap to simulate a BOC deployment for the student. Its permanent position eliminates the worry of relocating it on each jump, or the possibility of being accidentally dislodged.

Skyhook RSL

The Automatic Release Lanyard is now incorporated into the RSL. If the RSL side riser breaks, or releases by itself for any reason, this feature will automatically release the other riser, thus preventing a main-reserve entanglement.

The RSL, with its Tru-Lok pin, is designed so that only a hard, straight-up pull will cause a left side cutaway and reserve activation, greatly reducing the chance of accidental functioning..

UPT believes that you should be able to activate your reserve with either hand. So the RSL is designed to also function as a right hand reserve ripcord, in the event that the standard left hand reserve ripcord cannot be reached, because of injury or student interference.

Disc Release: How It Works

Note: Some photos are shown without disc covers however all discs come with a disc cover now.

The drogue is connected at the center of the main container, and held in place by the main container closing system.

This yields a head high droguefall position, and makes our of sequence deployments virtually impossible.

When either ripcord is pulled, the closing loop slips through a series of "D" rings, allowing the container to open and release the drogue disc. The drogue then partially collapses to the size of a normal pilot chute, and deploys the main canopy.

Because the normal loop-through-grommet main container closing system also holds and releases the drogue, this is no need for the addition of a three-ring drogue release. The system is far less complex and therefore much more reliable.

The Micro Sigma can hold the following parachutes. Main Canopy: Sigma 340. Reserve Canopy: SR340 or SR370.

To place an order for a custom Micro Sigma Tandem Harness/Container, use the online rig coloring program at this link. Then fill-in those colors on the Sigma order form downloaded at the link below:

Micro Sigma Order Form

The completed order form can then be uploaded at the link above with your order.

The UPT PD Sigma Tandem Main Canopy, made by Performance Designs exclusively for United Parachute Technologies, is the preferred choice for use with Sigma and Micro Sigma Tandem Containers.

Available in these sizes:

  • 340 (for use with Micro Sigma)
  • 370 (for use with Sigma)
  • 395 (for use with Sigma)

All sizes of the UPT PD Sigma Tandem Main Canopy, as well as the SR340 and SR370 Reserve Canopies, have an approved gross weight limit of 500 lbs., which is approximately 50 pounds of gear and 450 pounds of jumper weight.

To place an order for a custom UPT PD Sigma Tandem Main Canopy, fill-in the order form downloaded at the link below:

Sigma Main Canopy Order Form

The completed order form can then be uploaded at the link above with your order.

Once the order is submitted, we will contact you to review the order, make any necessary changes and give you the final price with any additional options and/or upgraded shipping. Payment can be made through adding this to your online cart with payment.

Note: In-Stock, pre-built Micro Sigma containers and canopies may be available on an immediate turnaround time. Contact ChutingStar for UPT Sigma Tandem stock info.

More Information
Price $18,050.00
Brand United Parachute Technologies
Articulation Availability None
Padding Options Available Standard Padding
Chest Strap Widths Available Type 8 Wide 1 23/32"
Cutaway Handles Available Pillow
Fabrics Available Cordura 1000
Hardware Type Availability Stainless Steel
Riser Cover Types Available Magnetic
Riser Sizes Available Type 8 1 23/32" (wide risers)
RSL Options Skyhook RSL
Toggle Types Available Velcroless
Kill Line Pilot Chute Availability Included
Hook Knife Pouch Availability Yes
Cut In Laterals Availability No
Name Embroidery Available Yes (at extra charge)
