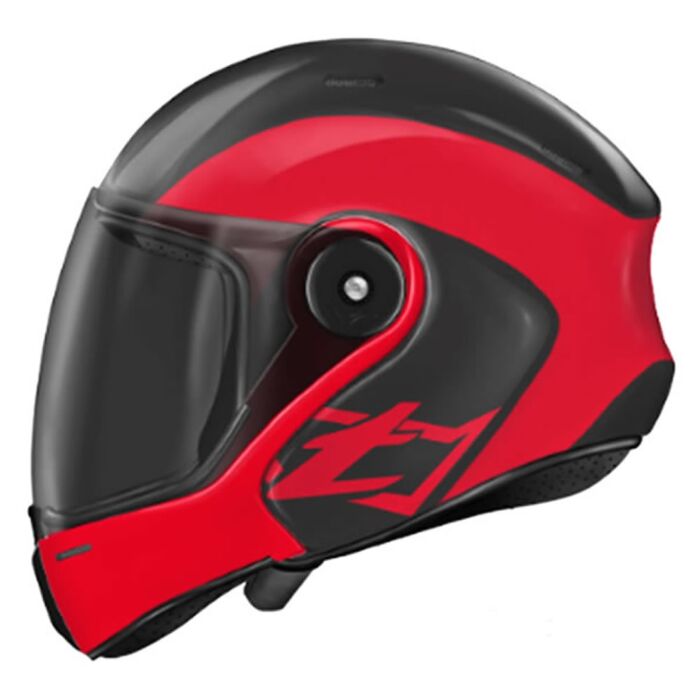

Custom Tonfly TFX Full Face Helmet.

A next generation helmet by Tonfly especially developed for high speed flight.

TFX is the first Full Face Helmet made by Tonfly, as a result of intense Research and Development. It was developed to have the tightest fit and stability possible even at very high speeds.

The main reason behind the decision of developing a modular helmet and the flip chin, is simply to being able to fit in it, otherwise it would not be possible. Once the helmet is on, it is possible to keep just the visor open.

TFX is engineered to have a tight fit that protects from the base of the head and covers all around the neck. Tonfly simply wanted a small, protective helmet, made out of the highest quality materials.The flip chin also allows to communicate easily without taking off the helmet, such as for quick debriefs between tunnel sessions.

You only need one hand to open the visor or the chin piece. The visor opens by pushing the hook out and up with your thumb. Thin chin piece opens by pushing the button down with your index finger as you lift the chin up with your thumb.

The modular lining system of the TFX allows the tightest fit and combines maximum comfort with great stability giving you real protection from the base of the head up. The TFX lining is made with top quality antiallergic materials. The lining is removable and washable.

Tonfly's TFX is protective for real. The shock absorbing EPS liner keeps your head safe. The shock absorbing EPS liner is combined with the double density foam ears. Both ears can accommodate one audible altimeter on each side and fits the most common audible from LB Altimeters: Solo, Optima, Quattro and Protrack.

The TFX features a double ventilation system to keep your mind fresh even after intensive use. There are 2-way in/our air flow vents at the top and back of the helmet as well as an in-air flow vent for internal visor ventilation.

The TFX has been inspected and tested for:

  • Construction
  • Shock absorption capacity
  • Determination of field vision
  • Penetration test
  • Retention system performance
  • -20 degrees Celsius cold conditioning
  • 50 degrees Celsius hot conditioning
  • UV artifical aging
  • Water artifical aging
  • Crash Rated European standard EN966: 2012 + A1: 2012, category HPG for AIRBORNE SPORTS
  • Visor rated under standard EN166 for Personal Eye Protection
  • Complies to the newly developed Skydiving Helmet Standard XP S 72-600

So wide and so clear describes the TFX visor with a super-wide visual field as well antifog and antiscratch system. The visor is 2.3mm thick polycarbonate that guarantees a wide visual field without image distortion. The TFX visor is available in clear, brown or smoke.

The visor has been rated under EN166 for Personal Eye Protection and tested for:

  • Field of vision
  • Lateral protection
  • Refractive powers
  • Quality of material and surface
  • Temperature stability
  • Diffusion of light
  • Surface damage by fine particles
  • Transmittance (UV stability)
  • Increased robustness
  • High speed particles
  • Ignition

Mix the colors on your TFX as you like it! You can mix colors between the shell, chin and side plates. Available colors for the TFX, in Matte or Gloss, include:

  • Dark Grey
  • Lemon Yellow
  • Black
  • Bay Blue
  • Bright Green
  • White
  • Orange
  • Pink
  • Red

All standard colors above as well as the clear visor is included in the same base price. The smoke or brown visor, the X-Design and any other add-ons are extra.

Sizes:

  • Shell 0 with a 66.5cm (26.2 in) face circumference and available liner sizes of 54cm, 55cm, 56cm and 57cm
  • Shell 1 with a 68cm (26.8 in) face circumference with available liner sizes of 56cm, 57cm, 58cm and 59cm
  • Shell 2 with a 69.5cm (27.4 in) face circumference available liner sizes of 58cm, 59cm, 60cm and 61cm

The inside lining is made in two parts to allow fitting to different head shapes. The main lining is based on the head circuference. The secondary lining is based more on the shape of your face and is available in 3 different thicknesses: 5mm, 10mm and 15mm. This allows three different fits for every available size, giving the TFX 36 different available size combinations between shell size, main lining and secondary lining.

Additional detais:

  • Crash Tested EN966 + EN166
  • Complies with Skydiving Helmet Standard XP S 72-600
  • Shell Carbon Fiber Aramid
  • Visor Polycarbonate 2.3mm
  • Total weight Approximately 950 grams
  • Sizes 54cm to 61cm
  • Helmet type Modular

Measurements:

You can be measured by our ChutingStar Crew at our ChutingStar Skydiving Gear SuperStore in Marietta GA or at any event or boogie we are attending. Or, you can submit your own measurements following the measuring guide below. See the image below for a demonstration of the 3 measurements, plus the additional description below. Contact us for additional help with how the measurements are taken.

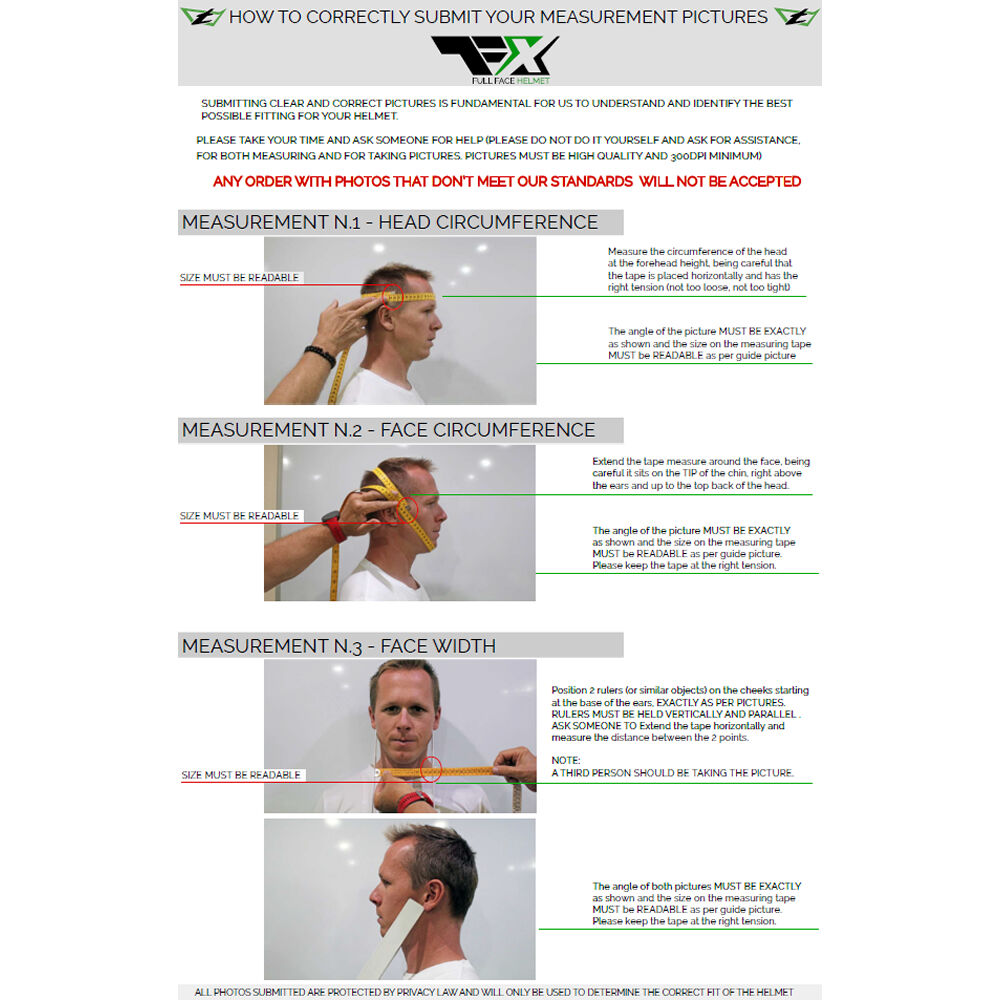

TFX Measurement Demo

  • Head Circumference: Measure the circumference of the head at the forehead height, being careful that the tape is horizontal and has the right tension (not too loose, not too tight)
  • Face Circumference: Extend the tape measure around the face, being careful to pass it on top of the chin, above the ears up to the top back of the head.
  • Face Width: Measure the face width by positioning 2 rulers (or similar objects), at the base of the ears and make sure they are held vertically and parallel between them. Extend the tape horizontally and measure the distance between the 2 points.
  • Upload a photo of the Face Width measurement being taken.

To configure your TFX, write in the desired colors above, or for further customization, please follow the instructions below.

The price listed is the base price of the TFX, and we've included some of the more common options to choose from. Any additional options selected with the online Tonfly Configurator will be added and charged to you after the ChutingStar Skydive Crew confirms the order with you and Tonfly.

Tonfly TFX Configurator Link

  • Begin by configuring your Tonfly TFX online with all your options, colors and any extras
  • At Step 3 (Comments & Requests), write ChutingStar Customer
  • At Step 4 (End), enter your first name, your last name, and then the ChutingStar e-mail address Gear@ChutingStar.com
  • Click SAVE CONFIGURATION
  • Next, you return to ChutingStar.com here to pay for your helmet by adding this helmet and options to your cart and checking out on our site (and earning those ChutingStar SuperStar$ Rewards!)
  • Our ChutingStar Skydive Crew will combine your Tonfly TFX configuration, your in-shop head measurements and ChutingStar order, and will contact you to go over any additional questions and/or changes, and then finalize the order for production with Tonfly.
  • As soon as the TFX arrives from Tonfly, it will ship to you with any additional items ordered from ChutingStar!

Tonfly TFX User Manual Link

More Information
Price $499.00
Brand TonFly
Color Custom
Audible Pockets or Mounts Left Inner Pocket, Right Inner Pocket
Camera Mount Options None
Chin Fastener Options Chin Cup, Chin Strap
Liner Type Certified thermoformed
Shell Material Carbon Fiber
Sizes Available XS, Small, Medium, Large, XL, 2XL
Helmet Type Open Face
Colors Available Black, Blue, Green, Grey, Orange, Pink, Red, White, Yellow
Visor Flips Up Yes
Visor Tint Clear or Smoke
