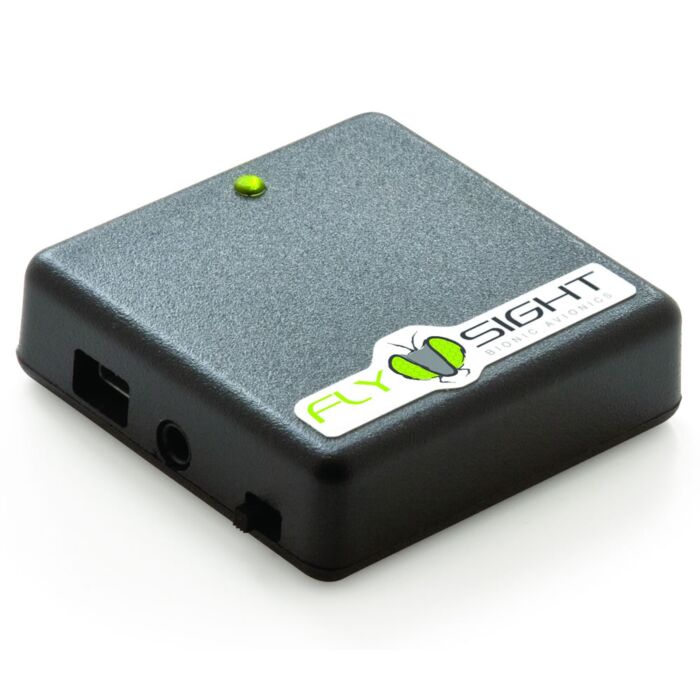

FlySight Audible GPS

FlySight Audible GPS.

Now with the 10 hz update and logging as well the higher-gain antenna update!

FlySight is not your mother's GPS. FlySight was designed by Bionic Avionics Inc. from the ground up for wingsuit and canopy pilots and does one truly revolutionary thing:

FlySight provides real-time audible indication of glide ratio, horizontal or vertical speed.

If you've used other GPS receivers, you know the drill. When you land, you review data from the jump. If you're lucky, or if you've planned a very simple jump, you might remember what you were doing when your glide ratio maxed out. On the next jump, you try to do it again.

FlySight speeds the learning process.

When you change your body position, you instantly hear a change in the tone. Your brain easily connects this feedback with your precise body position, making it astonishingly easy to remember what worked and what didn't.

FlySight handles the dynamics of freefall exceptionally well. FlySight can be turned on a few minutes before exit, and begins providing audible feedback immediately after exit.

"I highly recommend the FlySight," says Jeff Nebelkopf, Chief Wingsuit Test Pilot for Tony Suits. "It is a great training tool and logs 5 points per second. Like any GPS there is about a 1 second lag time. Once you do a few jumps with it your glide ratio or speed should improve."

It's also proven be a great tool for canopy swoopers.

“The 5Hz sample rate, accuracy, and small size have made the FlySight an effective tool for swoop training," says competitive canopy pilot Dan Raymond. "I use it to track key performance metrics and to generate a detailed 3D view of the entire swoop.”

Note: The FlySight Audible GPS can only be heard with a pair of stereo headphones (not included).

See the FlySight mounts available from ChutingStar.com for secure external mounting options.

FlySight Viewer

• The FlySight Viewer is a simple utility which produces plots of your logged jumps. Data can be imported from FlySight CSV or NMEA files produced by most GPS receivers.

Plots can include one or two parameters on the vertical axis, including:

• Glide ratio
• Horizontal speed
• Vertical speed
• Elevation

The horizontal axis may be either time or distance. This allows the user to measure how much forward movement is achieved in a given vertical drop.

Finally, the Flysight Viewer can export data as FlySight CSV or NMEA files, or as KML files which can be loaded into Google Earth.

Download requires Mac OS 10.5

Download requires Windows XP, Vista, or 7

Paralog

• If you are looking for a more full-featured package, we strongly recommend Paralog, which is available separately through ChutingStar.com.
• Data from FlySight can be imported into Paralog, where it becomes part of a comprehensive logbook, including jump details, photos, video, and more.
• As well as producing 2D plots from logged data, Paralog can also produce 3D jump profiles, as shown in the screenshot to the right.

FlySight Audible GPS Features:

• u-blox 8 chipset
• 10 Hz update and logging
• Real-time audible feedback

GPS Performance

Hot start:

• 1 s

Warm start:

• 28 s

Cold start:

• 28 s

GPS Accuracy

Position:

• 2.5 m (autonomous)
• 2.0 m (SBAS)

Velocity:

• 0.1 m/s

Storage

• 512 MB microSD card included
• One million seconds of logged data at 5 Hz
• Data and configuration accessed via USB flash drive

Battery

• Built-in rechargeable lithium-polymer battery
• Charging time: 1.5 hours
• Operating time: 2.5 to 3.5 hours

Output

• 3.5 mm stereo headphone jack
• Requires a pair of stereo earphones (not included)

Dimensions: 50 mm (2 inches) x 50 mm (2 inches) x 15 mm (0.6 inches)

Weight: less than 50 g

Package Contents:

• FlySight GPS receiver
• 512 MB microSD card installed
• Mini USB data/charging cable

Note: When mounting your FlySight, and also using a GoPro camera, mount the two with as much space between the two as possible as the GoPro can cause interference with some of the GPS signals being received by the FlySight.

Important Notes on FlySight Altitude Alarms

There are a couple of ways to get altitude indication with the FlySight:

• Up to 10 altitude alarms can be configured, either as beeps or it can play a file at that altitude.
• With the latest firmware, there is also an "altitude mode" which will call out altitude at fixed intervals above 1500 m.

There are a couple of big caveats with both of these:

• Both indicate "geometric altitude", which is the true altitude above ground. Most altimeters measure pressure and then convert this to altitude by assuming a standard atmospheric model, but this can result in 5-10% differences compared to the true altitude. The situation here isn't quite as simple as "geometric is more accurate", since, e.g., aircraft use barometric altimeters, so flight levels are defined in terms of barometric altitude.
• The user must manually configure the dropzone elevation.
• Finally, these altitude indications are intended as a secondary source of information only--e.g., they are useful for wingsuit competitors to indicate the top/bottom of the competition window. They should never be used for life-saving purposes, for a few reasons, e.g., a GPS can lose signal; the user's earphone could fall out or fail in some other way; the unit could be configured with an incorrect dropzone elevation. For all of these reasons, we strongly recommend that FlySight should not be used, e.g., to indicate break-off or pull altitude.
