UPT Replacement Magnet

$7.00

A FREE standard shipping option is available to all US, APO and FPO addresses at checkout for all orders of $99 or more (excludes Smoke Grenades).  ChutingStar ships worldwide from our Marietta, Georgia, location. Orders are packaged and shipped Monday through Friday. ChutingStar offers several shipping speeds from USPS and UPS at checkout. Full Shipping Info at this link.

SuperStars Rewards can be earned and spent on products you purchase online at checkout. You must be logged in to your account at checkout to earn and/or use your points. Full details on the the SuperStars Rewards Program can be found at this link.

We want you to be completely satisfied with your purchase. If you change your mind about the color or the fit is not quite right, whatever the reason, you can exchange it for another item or return it for a refund. ChutingStar will accept most items back for a full or partial refund, depending upon the original item, the condition and the timeliness of the return. Full returns and exchanges info at this link.

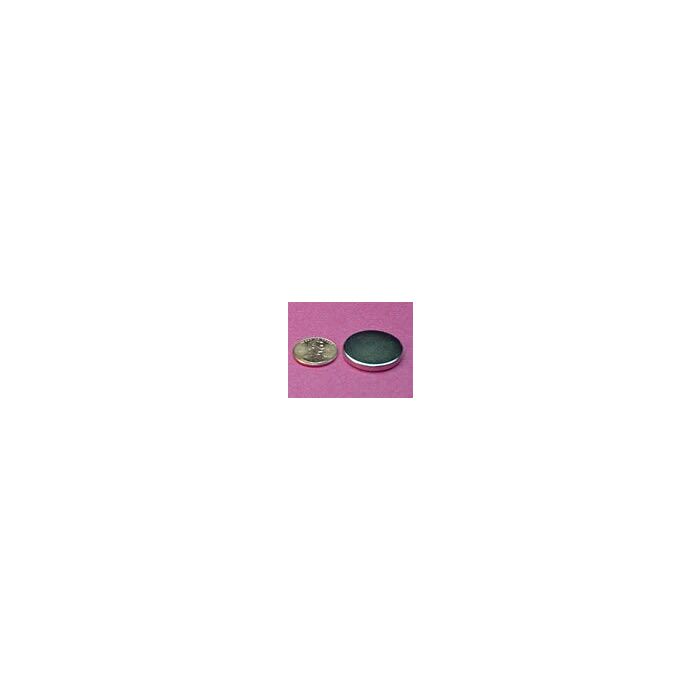

Replacement Magnet for UPT Vector, Sigma and Micro Sigma containers.

If you lose a magnet or have one break, this is a replacement. These magnets are used in riser covers and drogue disc covers. Riggers also use these magnets for making magnetic main deployment bags and magnetic freefly handles. Sold per magnet.

  • Dimensions: 1" dia. x 1/8" thick
  • Tolerances: ±0.004" x ±0.004"
  • Material: NdFeB, Grade N42
  • Plating/Coating: Ni-Cu-Ni (Nickel)
  • Magnetization Direction: Axial (Poles on Flat Ends)
  • Weight: 0.426 oz. (12.1 g)
  • Pull Force, Case 1: 12.60 lbs
  • Pull Force, Case 2: 57.00 lbs
  • Surface Field: 1601 Gauss
  • Max Operating Temp: 176ºF (80ºC)
  • Brmax: 13,200 Gauss
  • BHmax: 42 MGOe

This is a strong NdFeB disc in the very popular 1" diameter size. The nice thin shape allows the DX02 to be used inconspicuously for a wide array of applications.

More Information
Price $7.00
Brand United Parachute Technologies
Color Steel
Colors Available Steel
Price View Price Range
